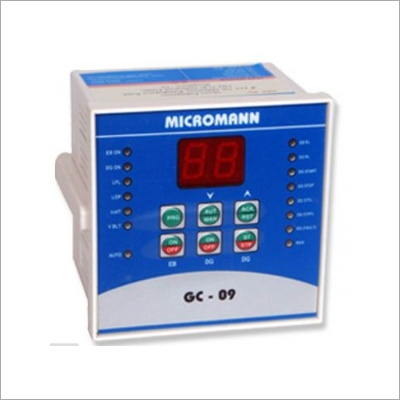

AMF Logic System

AMF Logic System
AMF Logic System
Product Code : GC-09
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
Product Description
We, Poweramps Technology Pvt. Ltd., are a well recognized manufacturer and supplier of highly efficient AMF Logic System. It is made by implementing the latest development in the field of electrical engineering to meet the requirements of clients. Further, it is quality tested after manufacturing to ensure about the high standard and efficiency in performing the logic system functions. Also, the AMF Logic System finds varied applications in all rating of DG sets for load changeover application and Auto start/ stop.

Features:

  • Power on Reset (Auto Test)
  • Auto and Manual operation
  • Wide range of fault detection
  • Dual mode operation
  • Field programmable Digital timers
  • Designed weightless and compact

Specifications:

Standard Auxiliary supply

DC supply 12V / 24V

Cranking Dropouts

Able to survive 0V for 500mS, Providing supply of at least 6V before dropout and supply recovers to 12V without an internal battery.

Maximum Current Operating

60mA

Operating Temperature

-30 to +70°c

Physical Enclosure

ABS Plastic:                                                                                                                                                                                                                                  a.Dimensions: 96(W) * 96(H) * 75(D) mm

b.Panel cutout: 91(W) * 91(H)

c.Mounting types: Panel & wall mounting

d.Colors available: Black & Ivory

e.Humidity: 0-90%RH non-condensing

Contact Rating

a.Start / Stop: 2A

b.EB/DG: can be used up to 400A contactor

Timer Settings

Hold PRG button For 5 Sec i.e. till 2 Decimal appears release.                                                                                                                                                                       T1: EB closing Delay (5sec)(For next timer press PRG once and use arrow keys to calibrate.)

T2: Start Delay (5sec)

T3: Crank Time (>3sec)

T4: Stop Time (20sec)

T5: Idle Run. (1min)

En-0-Enr-stop / En-1-Enr-Run. Press the PRG button to save your settings and come out of the loop

Follow the terminal connections as shown below

   1

  2

  3

  4

  5

  6

  7

 8

 9

  +ve12/24v

 -ve

 LFL

 LOP

 HWT

V-Belt

Mains-ve

 Ph

 N

Battery

-ve Inputs           LVM

DG Supply


    10

     11

     12

    13-14

    15-16

   17-18

   Start

   Stop

   Hooter

   EB-relay

  DG-relay

 DG-set run

+ve outputs
